2SC0435T2G1-17

Item No.:
2SC0435T2G1-17
Part number: 2SC0435T2G1-17
Package: IGBT
Brand: POWER-CANCEPT
CONTACT US FOR PRICES AND MORE INFORMATION
Datasheet:
Quantity:
Delivery:
Payment:
RFQ List (0item)
In Stock : 6765
Please send RFQ, we will respond immediately.
-
+

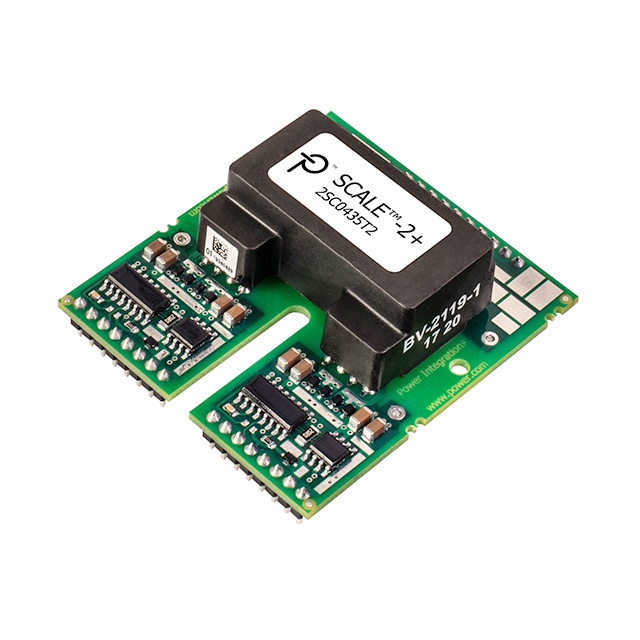

2SC0435T2G1-17 information
        The SCALE™-2+ dual-driver core 2SC0435T2G1-17 (Connector pin length of 3.1mm, suitable for PCB thicknessof 2mm; increased EMI capability; lead free) / 2SC0435T2G1C-17 (Coated version using ELPEGUARD SL 1307FLZ/2 from Lackwerke Peters) combines unrivalled compactness with broad applicability. The driver isdesigned for universal applications requiring high reliability. The 2SC0435T2G1(C)-17 drives all usual highpower IGBT modules up to 1700V. The embedded paralleling capability allows easy inverter design coveringhigher power ratings. Multi-level topologies are also supported.The 2SC0435T2G1(C)-17 is the most compact driver core in its power range with a footprint of only 57.2 x51.6mm and an insertion height of max. 20mm. It allows even the most restricted insertion spaces to beefficiently used. Compared with conventional drivers, the highly integrated SCALE-2+ chipset allows about85% of components to be dispensed with. This advantage is impressively reflected in increased reliability.The 2SC0435T2G1(C)-17 combines a complete two-channel driver core with all components required fordriving, such as an isolated DC/DC converter, short-circuit protection, Advanced Active Clamping as well assupply voltage monitoring. Each of the two output channels is electrically isolated from the primary side andthe other secondary channel.An output current of 35A and 4W drive power is available per channel, making the 2SC0435T2G1(C)-17 anideal driver platform for universal usage in medium and high-power applications. The driver provides a gatevoltage swing of +15V/-10V. The turn-on voltage is regulated to maintain a stable 15V regardless of theoutput power level.Its outstanding EMC allows safe and reliable operation in even hard industrial applications.

The product is in the warehouse and can be shipped immediately

***************************************************************
FOR MORE DETAILS , PLEASE CONTACT US, THANK YOU.
