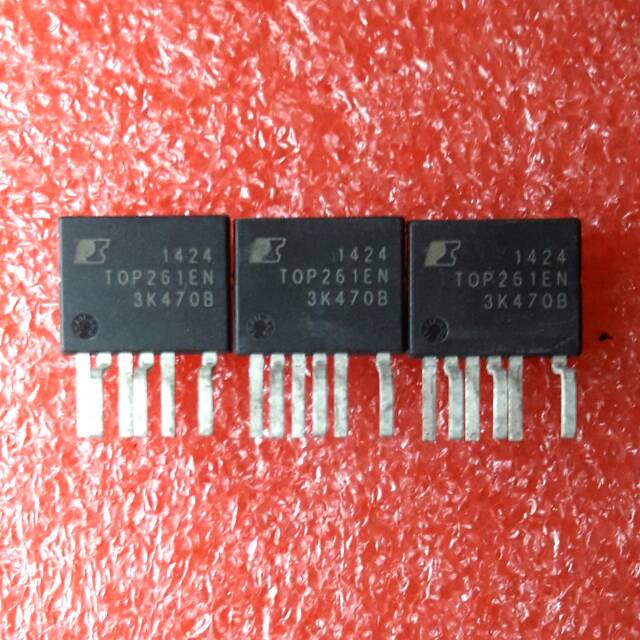

TOP261EN

Item No.:
TOP261EN
Part number: TOP261EN
Package: ESIP
Brand: POWER
CONTACT US FOR PRICES AND MORE INFORMATION
Datasheet:
Quantity:
Delivery:
Payment:
RFQ List (0item)
In Stock : 7089
Please send RFQ, we will respond immediately.
-
+
TOP261EN information
Lower System Cost, Higher Design Flexibility
Multi-mode operation maximizes effi ciency at all loads
New eSIP-7F and eSIP-7C packages
Low thermal impedance junction-to-case (2 °C per watt)
Low height is ideal for adapters where space is limited
Simple mounting using a clip to aid low cost manufacturing
Horizontal eSIP-7F package ideal for ultra low height adapter and monitor applications
Extended package creepage distance from DRAIN pin to adjacent pin and to heat sink
No heatsink required up to 35 W using P, G and M packages with universal input voltage and up to 48 W at 230 VAC
Output overvoltage protection (OVP) is user programmable for latching/non-latching shutdown with fast AC reset
Allows both primary and secondary sensing Line undervoltage (UV) detection prevents turn-off glitches
Line overvoltage (OV) shutdown extends line surge limit
Accurate programmable current limit
Optimized line feed-forward for line ripple rejection
132 kHz frequency (254Y-258Y and all E/L packages) reduces transformer and power supply size
Half frequency option for video applications Frequency jittering reduces EMI fi lter cost
Heatsink is connected to SOURCE for low EMI
Improved auto-restart delivers <3% of maximum power in short circuit and open loop fault conditions
Accurate hysteretic thermal shutdown function automatically recovers without requiring a reset
Fully integrated soft-start for minimum start-up stress
Extended creepage between DRAIN and all other pins improves fi eld reliability


The product is in the warehouse and can be shipped immediately

***************************************************************
FOR MORE DETAILS , PLEASE CONTACT US, THANK YOU.
